Double Jacketed Gasket Machine

Special designed to produce double jacketed gasket:1.5-8.0mm thick, width≤80mm, diameter 150-4000mm.


Send Inquiry


Description

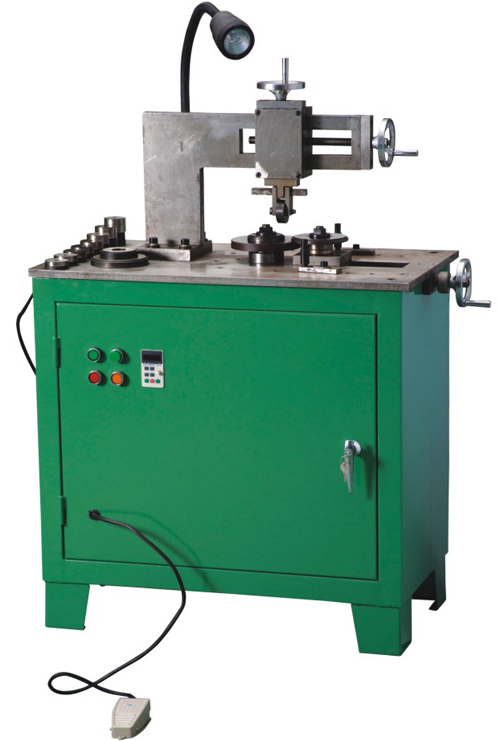

KXT E1410 style machine is special designed to produce double jacketed gasket.

Producing Ability: Double jacketed gasket 1.5-8.0mm thick, width80mm, diameter 150-4000mm.


Specification as following:
STYLE KXT E1410 Double Jacketed Gasket Machine
Double Jacketed gasket thickness 1.5---8mm
Double Jacketed gasket width 80mm(Standard machine package include models for 8 different width, other width models availabe for cutom-made)
Maximum gasket OD 4000mm
Minimum gasket ID 150mm
Total power 4kw
Spindle motor power 1.5kw
Power supply 380V/220V as request, 3 phases
linear speed 0--150mm/s
Frequency Converter 2.2G
Machine measurement 900*500*1200mm
Machine net weight 200kg
